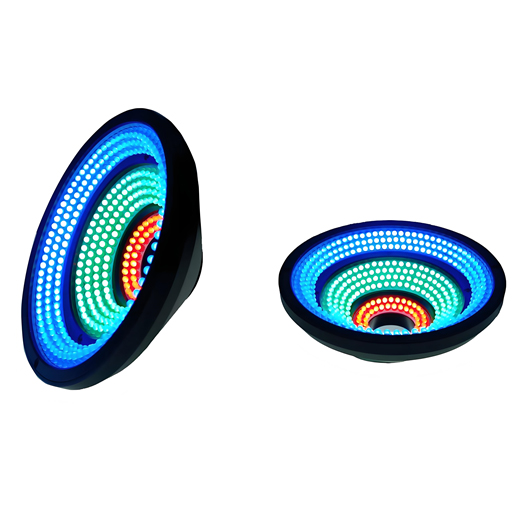

The HYN-SAI series AOI-specific lighting system is designed with high-brightness RGB LED arrays. It provides multi-angle and multi-color illumination, with each color independently controlled to highlight the three-dimensional details of objects.
Applications:
- Specifically designed for detecting soldering defects on PCB boards and multi-layer object inspection.
- Surface defect detection for rubber rings and sealing rings.
- Surface defect inspection for various objects.
Naming instructions：
HYN---SAI 120
① ②
① AOI-Specific Lighting System
② Outer diameter size, unit: mm
Parameter Table：
|
Serial Number |
Model |
Luminous color |
Output power supply power |
Options |
|
1 |
HYN-SAI102 |
Red/Green/Blue |
DC 24V/8.1w |
/ |
|
2 |
HYN-SAI104 |
Red/Green/Blue |
DC 24V/12.9w |
/ |
|
3 |
HYN-SAI118 |
Red/Green/Blue |
DC 24V/13.3w |
/ |
|
4 |
HYN-SAI120 |
Red/Green/Blue |
DC 24V/14.3w |
/ |
|
5 |
HYN-SAI120-35 |
Red/Green/Blue |
DC 24V/12.0w |
/ |
|
6 |
HYN-SAI136 |
Red/Green/Blue |
DC 24V/19.6w |
/ |
|
7 |
HYN-SAI138 |
Red/Green/Blue |
DC 24V/28.3w |
/ |
|
8 |
HYN-SAI162 |
Red/Green/Blue |
DC 24V/2.9w |
/ |
|
9 |
HYN-SAI174 |
Red/Green/Blue |
DC 24V/38.6w |
/ |
|
10 |
HYN-SAI180 |
Red/Green/Blue |
DC 24V/43.6w |
/ |
|
`11 |
HYN-SAI200 |
Red/Green/Blue |
DC 24V/53.9w |
/ |
|
12 |
HYN-SAI200-5 |
Red/Green/Blue |
DC 24V/66.6w |
/ |
|
13 |
HYN-SAI205-42 |
Red/Green/Blue |
DC 24V/49.3w |
/ |
|
14 |
HYN-SAI205-80 |
Red/Green/Blue |
DC 24V/73.1w |
/ |
|
15 |
HYN-SAI220 |
Red/Green/Blue |
DC 24V/81w |
/ |
|
16 |
HYN-SAI250 |
Red/Green/Blue |
DC 24V/83.2w |
/ | |
