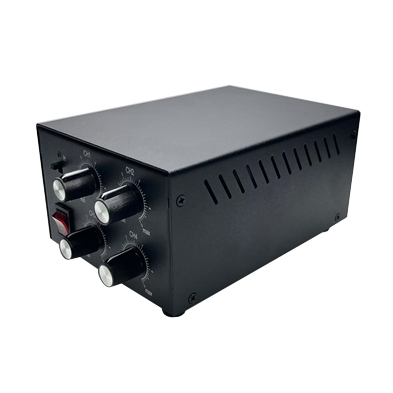

The HYN-AP Series Analog Controller provides brightness control power for LED light sources. It features a manual adjustment knob for precise control and offers simple trigger functionality.
Product Features:
- Analog constant voltage control
- Supports external trigger mode
- Low trigger response time (≤10μs)
- Knob-based stepless linear brightness adjustment
- Switchable between constant-on and constant-off modes
- 5~24V bidirectional trigger, compatible with both high and low-level trigger modes
Specification Table
|
Model |
DSE-AP24V-2 |
DSE-AP24V-4 |
|
Number of Channels |
2 |
4 |
|
Power |
60W/120W |
60W/120W/200W |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
DC24V |
|
Operating Mode |
H: constant on，L: constant off， |
|
Dimming Method |
Manual knob, continuous adjustment |
|
Trigger Mode |
Level trigger (Constant On/Constant Off) |
|
External Trigger Voltage |
DC5V-24V |
|
Constant On/Off Mode Switching |
Manual toggle switch |
|
Strobe Time |
1-99us |
|
Operating Temperature |
-5℃-50℃ |
|
Dimensions |
185mmX110mmX48mm |
188mmX114mmX83mm |
|
Weight |
0.7kg |
0.9kg |
|
