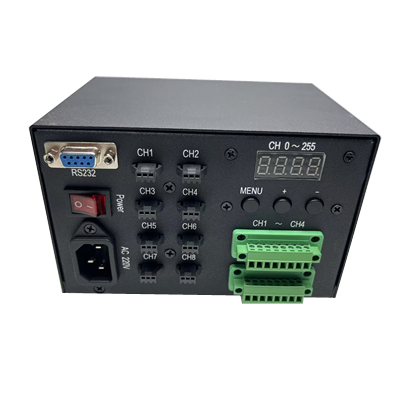

The HYN-DAP series digital controller provides high-precision brightness control for LED light sources. It can be controlled through the front panel or serial communication. It offers brightness adjustment from 0 to 255 levels, can sustain continuous illumination for extended periods, and can be used both as a regular light source controller and for implementing strobe control.
Product Features:
- Supports RS232 communication; built-in 24V switch power supply
- Low trigger response time (≤10us); supports external trigger mode
- Supports microsecond-level strobe; allows manual setting of brightness and mode
- 5~24V bidirectional trigger, can adapt to high and low level trigger modes
- Small size, easy installation, can be mounted with screws or on C45 mounting rails
Specification Table
|
Model |
DSE-DAP24V-4 |
DSE-DAP24V-8 |
|
Number of Channels |
4 |
8 |
|
Power |
60W/120W/200W |
120W/200W |
|
Input Voltage |
AC100-240V |
|
Output Voltage |
DC24V |
|
Operating Mode |
H: constant on，L: constant off， |
|
Dimming Method |
Adjustable in 0-255 levels with continuous button press |
|
Trigger Mode |
Edge-triggered during strobe mode, level-triggered during constant on/off mode |
|
External Trigger Voltage |
DC5V-24V |
|
Communication Method |
RS232 |
|
Strobe Time |
1-99us |
|
Operating Ambient Temperature |
-5℃-50℃ |
|
Dimensions |
128mmX127mmX82mm |
1251mmX127mmX106mm |
|
Weight |
0.7kg |
0.9kg | |
